Up to 70 Chirons are to be built in the Bugatti Atelier in 2017
Series production of the Bugatti Chiron is rapidly gathering pace. Currently, 12 super sports cars are taking shape in the French luxury brand’s production facility, the so called “Atelier” at the company’s headquarters.
It is planned to deliver the first vehicles to customers in the first quarter of 2017 and to build up to 70 of these cars this year. On average, about six months pass between the start of production and the delivery of a Chiron. 20 employees in the Atelier assemble the world’s most powerful, fastest, most luxurious and most exclusive production super sports car from more than 1,800 individual parts, working solely by hand.
At its facility in Molsheim in an idyllic location in Alsace, which has been the home of the marque since it was founded in 1909, Bugatti is making automobile dreams come true with the Chiron. Before customers can take delivery of their new Chiron, there is a lot to do. The first step is the configuration of the vehicle, which is completed by the customer together with a designer from Bugatti. Each Bugatti is unique and is manufactured in accordance with the customer’s personal wishes. This is why personalising is a top priority for Bugatti.
23 topcoat colours and eight carbon variants form the basic range for the exterior. In the interior, customers can choose from leather in 31 different colours or Alcantara in eight colours, as well as 30 stitching, 18 carpet and 11 belt colours. In addition to this basic range, thousands of other colours are possible. And in addition to that, individual colours may even be created to match a favourite handbag or the label on a customer’s preferred brand of mineral water. There are also many other design options such as logos or initials on the bottom of the rear spoiler or embroidery on the headrest and leather inlays on the central console. With its customising program “La Maison Pur Sang“, Bugatti is virtually in a position to meet a customer’s every wish – provided that installation in a super sports car is technically feasible and meets Bugatti’s high quality requirements.
Only when the customer has signed off the configuration does production planning start. The many small wheels of a complex process that runs to a strict time schedule are then set in motion. At the end of this process, a Chiron leaves the Atelier in Molsheim. Normally, a Chiron takes about nine months for this journey from configuration through to delivery – with an average degree of customising. The more unusual a customer’s wishes in terms of materials, colours or other details are, the more time will be required.
When a production slot has been assigned to a customer’s vehicle, the parts that are needed are ordered. From now on, the countdown has started and it will take about six months up to the delivery of the car. Now, Bugatti’s suppliers, who are located throughout Europe, work hard to deliver the parts that are needed to Molsheim in time for assembly.
One month before the start of production in Molsheim, the bodyshell is assembled with the monocoque and chassis substructure for the first time to ensure that everything fits together perfectly. Each part is assigned a kit number and is then transferred to the paint shop. It takes about three weeks to apply the various coats of paint. In the case of visible carbon fibre, a field in which Bugatti is the market leader in terms of production quality and diversity of colours, six layers are required. For the top coat, up to eight layers may be needed depending on whether the finish that has been ordered is uni, metallic or pearlescent. The process is so time-consuming because all layers are applied by hand and each individual coat needs to be sanded down and polished before work can start on the next coat.
Then the starting signal is given for the assembly of the Chiron in Molsheim. Christophe Piochon, Member of the Bugatti Board of Management responsible for Production and Logistics, watches over production, making sure that all processes run smoothly and there are no hitches. “Here in Molsheim, we have a small factory with a small warehouse. Neither our equipment nor our procedures can be compared with those of other car plants,” says the 40-year-old mechanical engineer, who worked in quality assurance with the Volkswagen Group before joining Bugatti. “’Just-in-time’ has a very special dimension for Bugatti,” he adds.

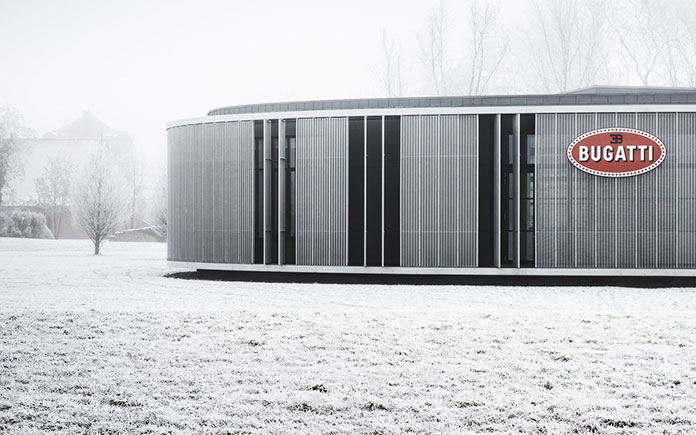

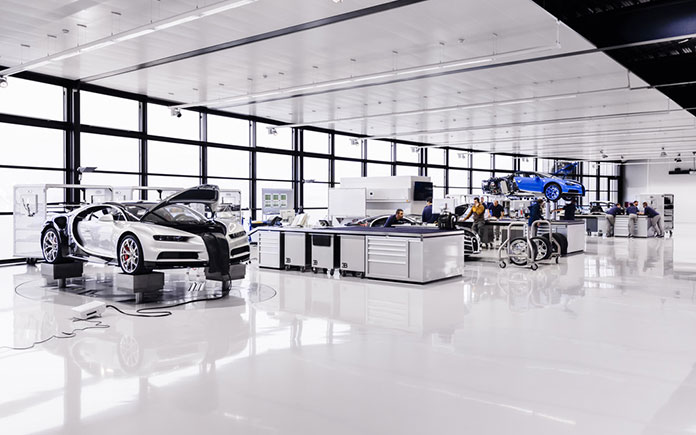

The production building for the Chiron, which Bugatti calls “Atelier“, has a floor space of more than 1,000 square metres. It was inaugurated in 2005 and has an oval configuration, based on the French brand’s logo, the Bugatti “Macaron”. It was designed by the renowned architect Professor Gunter Henn from Munich. For more than 10 years, the Veyron 16.4 and its derivatives were built here.
For the Chiron, many modifications were made to the Atelier and associated facilities to take account of the new product properties and increased complexity of the production process. For example, exterior components are now pre-assembled at the technology centre in the plant area, where they are already subjected to initial inspection. In addition, a new rolling dynamometer was developed to accommodate the 1,500 PS developed by the Chiron. The most striking change is the floor in the Atelier. It is made from epoxy and is conductive, ensuring the dissipation of any electrostatic charges. In addition, the reflecting glossy white creates an atmosphere comparable with the catwalk of a fashion house. “We are building a super sports car.
At Bugatti, no conveyor belts nor robots can be found. People work at stations, as in the workshop of a Formula One team. All in all, there are 12 stations. At the first station, the powertrain is prepared for assembly. This is supplied pre-assembled from the Volkswagen Group engine plant in Salzgitter, where specialists build the 1,500 PS engine in a pilot hall equipped exclusively for Bugatti and then put it through its paces on a test bench for eight hours. At the same time, a similar procedure is applied to the new 7-speed dual-clutch transmission which has been made bigger and stronger to accommodate the high power output of the Chiron and the gigantic torque of 1,600 Nm.
At the second station, the powertrain is installed on the chassis. Thanks to the increased use of carbon and other lightweight materials, this unit weighs 628 kilograms and is no heavier than that of the Veyron, the final version of which had a power output which was 300 PS lower. There are two chassis building platforms in the Atelier. At each station, three employees spend about one week on the assembly of the chassis. In contrast to a conventional production line worker, each of these employees must be in a position to assemble the entire chassis, including the rear end, monocoque and frame.

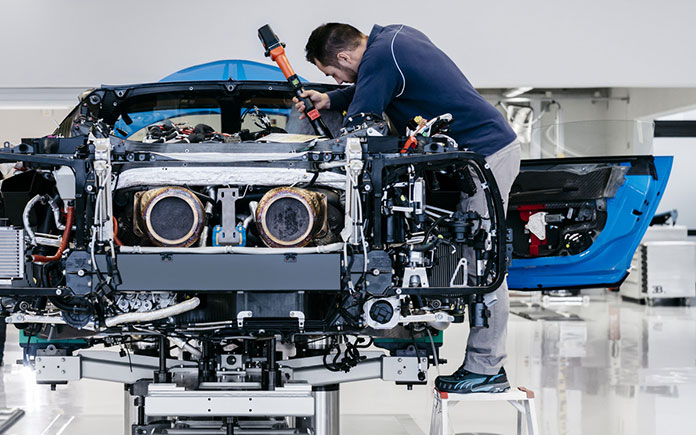

The rear end of the vehicle is built round the powertrain. At the same time, the monocoque and the front end are joined together and equipped with the wiring harnesses required. The pipes connecting the engine at the rear with the radiators at the front are also installed. Cooling is crucially important in the Chiron. The vehicle is equipped with three water pumps, one large pump for the high-temperature cycle and two smaller pumps for the low-temperature cycle. The cooling water pipes have the same diameter as a fire brigade’s spray lance and the flow rate is correspondingly high. The coolant flows to the engine along the driver’s side and returns on the passenger’s side after cooling the engine.

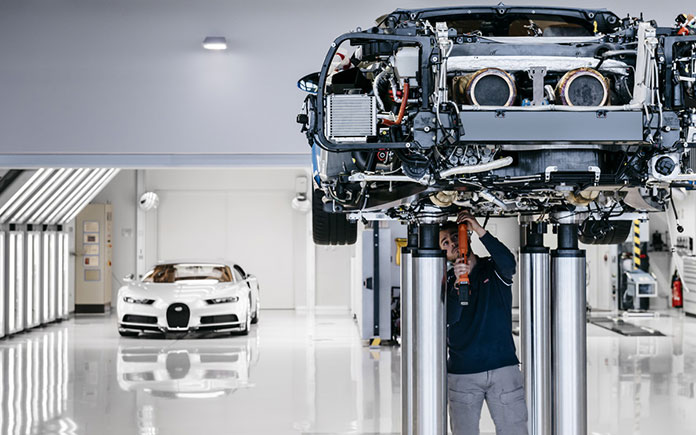

The only electronic tool used in chassis assembly is the new EC nutrunner system. This allows a data curve of each bolt tightened on the chassis to be stored on a computer connected to the system, which then gives the assembly worker a signal when the right torque value is reached. There are more than 1,800 bolted joints on a Chiron, with documentation required for 1,068.
The high point of chassis assembly is definitely the marriage – the operation of joining the monocoque and the rear end. 14 titanium bolts ensure that the bond between the two units is durable and extremely strong. Titanium was selected to save weight; each bolt only weighs 34 grams.
Finally, four wheels are bolted to the chassis and it then rolls forward to the next station – the filling unit, where all the operating fluids are filled into the vehicle: engine and transmission oil, brake fluid, hydraulic fluid and coolant. The coolant is filled in under vacuum which is maintained for 10 minutes in order to test the coolant cycle for any leaks again. This is where the 16-cylinder engine is started in the vehicle for the first time – always an exciting moment for the production team.

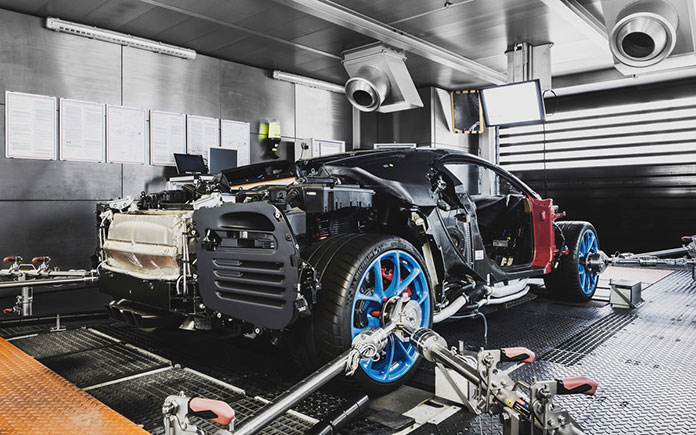

After this stage, the chassis travels a few metres to the rolling dynamometer. This is the part of the production facility that called for the greatest investment in preparation for the Chiron. The modifications, including larger electric cables, were necessary as the old rolling dynamometer could not absorb the 1,500 PS and 1,600 Nm developed by the Chiron. The new unit is so powerful that it can produce electricity with a current of up to 1,200 amps during operation. Bugatti feeds the excess power generated to the local grid in Molsheim. The Bugatti rolling dynamometer is the most powerful of its type in the world.

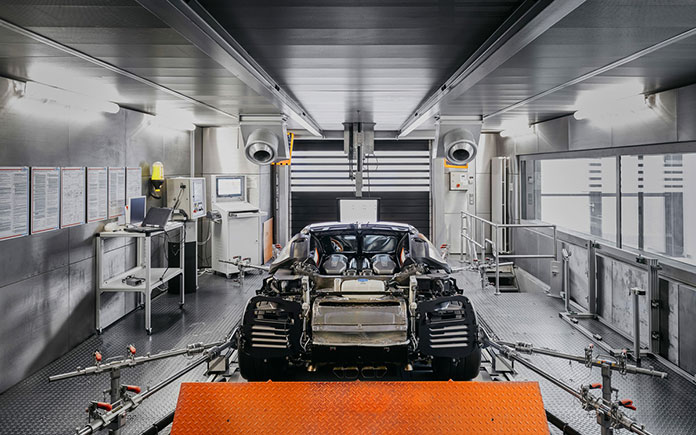

The impressive dynamometer is installed in a separate room with its own ventilation system for vehicle cooling and pollution control. For safety reasons, all the wheels of the car are fastened to the floor using special adapters. Speeds of up to 200 km/h and acceleration under full power (1,500 PS) can be simulated. A team member sits behind the wheel and follows all the tests on the monitor. Among other things, he monitors the engine settings, communication between the engine and transmission, the adjustment of the mass airflow meter and the clutch as well as the functioning of ESC, ABS and other programs. The tests take between two and three hours, during which time the vehicle covers about 60 kilometres.
When the Chiron has passed all its tests on the rolling dynamometer, it is fitted with its exterior skin at the following station. Here, the exterior parts, which are made entirely from carbon in the case of the Chiron, are installed on the vehicle. As some of the individual lightweight parts are very large and fragile, this work is extremely demanding, which is why a pre-assembly stage was introduced for the Chiron.
Pre-assembly is completed in Bugatti’s new technology centre, which is located only 200 metres away from the Atelier. The body parts are installed here on special mobile frames, with assembly points identical to those of the Chiron. The lighting conditions in this assembly hall are the same as in the Atelier, which means that any problems with the paintwork or damage to individual parts can be identified and remedied before the parts are installed on the vehicle. It takes between three and four days before the body parts have been installed on the Chiron and the gaps and joints have been precisely adjusted.
The next stage is a water test. Here, the Chiron is exposed to monsoon rain of varying intensity for 30 minutes to show that there are no leaks.
The interior fittings are only installed when this test has been completed. Here, two team members make sure that all the parts are installed in the right place in the interior of the Chiron, a process that normally takes about three days. Customers can choose between a luxurious variant with full leather trim or a more sporty combination of leather and carbon fibre.
When the interior has been completed, the Chiron is prepared for its test and final inspection drive. For this purpose, the entire super car is covered by a strong transparent plastic foil. This process alone takes a whole day. A further day is required for removing the foil and cleaning the vehicle following the test drive.

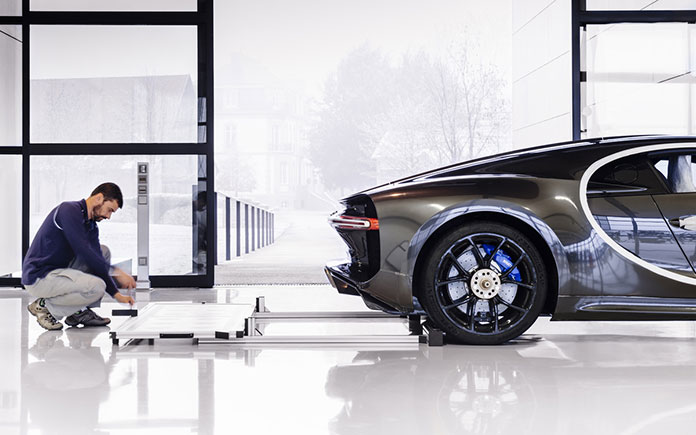

Before the Chiron leaves the Atelier for the first time on its test drive, the electronic functions of the vehicle are tested and the track of the wheels is adjusted. By the way, Bugatti does not use the original wheels and underbody on the test drive to ensure that these parts are protected against wear and damage. During the test drive, the Chiron is driven 300 km through the Vosges to the airport in Colmar, where it completes test of functions requiring speeds in excess of 250 km/h on the runway.
The return trip is covered at a more “relaxed” pace on the Autobahn to allow the vehicle to cool down. If the test driver gives the Chiron the thumbs up following the trip, the transmission oil is changed and the original wheels and underbody are installed in the Atelier. The car then completes a last test drive over 50 km before final dynamic approval is given.

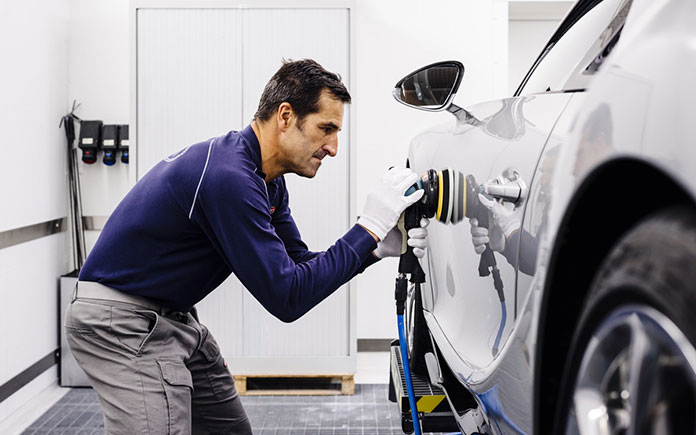

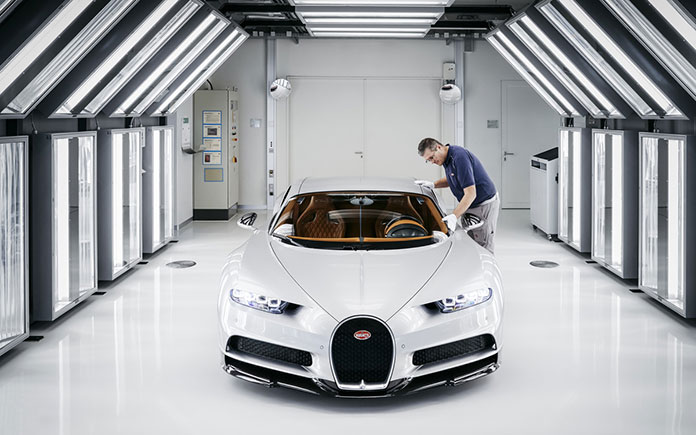

At this stage, the Chiron is transferred to the paint booth, where it is prepared for the finish. All the protective foils are removed and the vehicle is then cleaned and polished. The cosmetic preparation of the Chiron takes two days before it is transferred to the light tunnel. Here, a team member carries out a relentless inspection of the finish for more than six hours, after which the Chiron returns to the paint booth.
The team member then devotes himself to intensive optimization until all the visible blemishes have been remedied. This can take between three hours and three weeks if a highly personalised component needs to be produced again. When the auditor in the light tunnel has given his final approval of the finish, Christophe Piochon meets the Heads of the Sales, Quality Assurance and Customer Service Departments for management approval. Only when the managers are satisfied with the condition of the vehicle can an appointment for handing over to the customer be arranged.
Usually, the customer will already have visited Molsheim several times by then. Following a test drive in a demonstration vehicle, the signature of the contract and the configuration of their own personal Chiron, customers welcome the opportunity to witness the creation of their vehicle personally during production in the Atelier. Those, who really want to, can even spend a day working on their own sports car.
After about two months, the Chiron leaves the Atelier. During this time, 20 employees, including two women, have assembled a total of about 1,800 individual parts to create the world’s most powerful, fastest, most luxurious and most exclusive production super sports car. They are supported by 17 logistics employees and 15 quality assurance colleagues. Following production, their colleagues in Customer Service, the famous Bugatti Flying Doctors, assume responsibility for individual support to ensure that each vehicle remains in perfect condition and owners can be sure of having added the crowning glory to their collection – the ultimate super sports car.
